CP-e 335i ProFuelTM Controller
|
| Part No: | MG335-1031 |
| Name: | CP-e 335i ProFuelTM Controller |
This is a "must-have" option for StandbackTM
owners that push the limits of their turbo vehicle. The cp-eTM ProFuelTM
controller is an integrated, fully progressive supplemental fueling
controller that can be used to operate either a secondary set of batch
fire injectors, or a water/methanol pump. Now you can fine tune both
primary and secondary fueling using a single controller, and with
tremendous versatility.
Many supplemental fuel controllers (particularly in water/methanol
applications) on the market rely on very simple boost switches to
activate the pump. The issue is that these systems are not adjustable in
terms of when the spray begins, or how much fuel is delivered at any
given instant. This typically makes fine tuning discrete areas of the
powerband very difficult because flow is limited to "on" or "off."
The ProFuelTM controller allows the end-user to very finely adjust
supplemental fuel delivery relative to throttle position, MAP voltage,
or MAF voltage and on high resolution 30x30 tables. The pump duty is
scalable between 0-100% so supplemental fuel or water/methanol flow can
be increased relative to engine output.
The ProFuelTM also uses an emergency shut-down feature that can be
triggered by any 12-volt sensor. For instance, if you pair the
controller with a flow meter, when water/methanol flow drops below a
specified set point, the StandbackTM will respond by dropping the boost to
wastegate spring pressure, and will pull 5° of timing to prevent engine
damage. So now you can prevent engine damage should your supplemental
fueling system stop pumping.

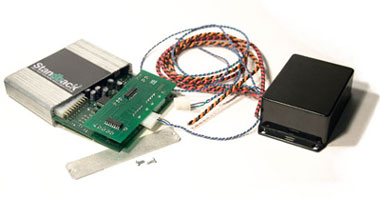

The ProFuelTM controller comes with the controller and driver to control
either fuel injectors or a water/methanol pump. Reservoir, lines, pump,
nozzles, and/or injectors sold separately.
|
| | |
