COBB Intercooler Hard-Pipe Kit
|
| Part No: | MGEV10-4070 |
| Name: | COBB Intercooler Hard-Pipe Kit |
As with all intercooler hard-pipe kits, the stock
rubber hoses to the intercooler are replaced with solid pipes to
eliminate distortion under boost. But the devil is in the details, and

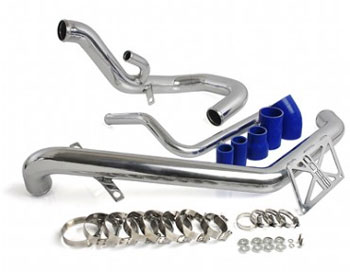

that is where similarities end. The COBB EVO X Hard-Pipe Kit consists
of single piece pipes made from mandrel bent aluminum tubing on both
the cold side and hot side of the intercooler. The results are
weld-free pipes from the turbo outlet to intercooler inlet and from the
intercooler outlet to the throttle body, without unsightly mid-pipe
silicone hose couplings that can disrupt flow or potentially blow off
under boost. The hot and cold pipe diameters are increased from the
stock 2.375" to 2.5", enhancing flow even further.
The By-Pass-Valve (BPV) gets its own hard-pipe from the cold side of
the intercooler, maintaining the factory location and orientation.
Maintaining this connection from the cold side ensures that cool air is
fed back to the intake system when the valve is in bypass mode,
preventing overheating of the air charge post turbo. The BPV is located
using a visually stunning COBB logo bridge that connects the BPV
hard-pipe to the hot side hard-pipe.
The COBB EVO X Hard-Pipe kit is one of the very few that will fit with
the factory air box in place (or the optional COBB SF Intake) as well
as the stock front engine cover. The kit is completed with high quality
COBB silicone hose couplings and heavy duty T-Bolt hose clamps to
eliminate those embarrassing hose blow-offs than can occur when
demanding the most from your EVO X.
The kit is available in Gunmetal powder coat or can be special ordered
in high polished aluminum finish. Painstaking effort goes in to the
fabrication, handling and packaging of our high polish kit, ensuring
the parts arrive with a beautiful unblemished finish.
EVO X Intercooler Hard-Pipe Features:
- Hot side pipe is single piece, weld-free mandrel bent aluminum tubing increased to 2.5"
- Cold side pipe is single piece, weld-free mandrel bent aluminum tubing increased to 2.5"
- Minimal hose couplings for clean appearance and reduced blow-off potential
- OEM BPV location and orientation maintained with BPV hard-pipe
- Eye-catching COBB logo hard-pipe bridge
- Fits with OEM airbox or optional COBB SF Intake
- Fits with OEM engine cover
- COBB silicone hose couplings
- Heavy duty T-Bolt hose clamps
• Gunmetal powder coat or high polish aluminum
|
| | |
